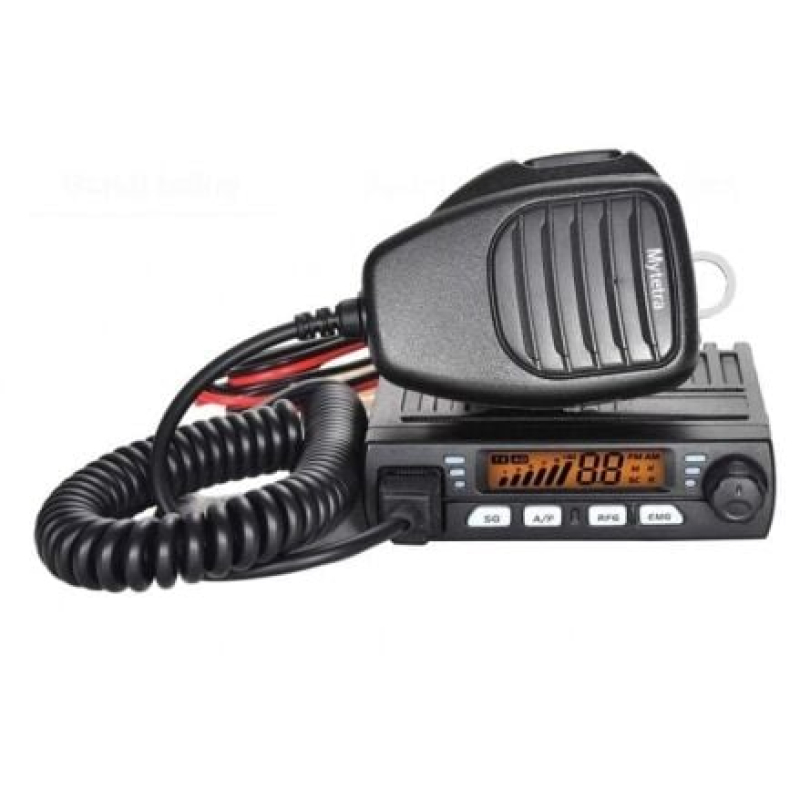

Myt 925 CB
3,999.00 ₺
8 adet stokta
Ürün Açıklaması
High power output 8W (H/L power selective) |
Frequecny range: 25.615-30.105MHZ (3 groups selectable) |
40 storage channels |
AM and FM mode switchable |
AM and FM mode squelch level adjust |
RF gain control |
Keypad lock |
Scan |
Frequency is fixed and unprogrammable |
Technical Specifications:
General Specifications | |
Modulation mode | AM/FM |
Frequency range | 25.615-30.105MHz |
Frequeny tolerance | ±5.0ppm |
Input voltage | 13.2 |
Dimensions:(mm) | 109*104*25 |
Weight:(g) | 421 |
Frequency control | PLL Synthesizer |
Operating Temperature Range | -25℃~ + 50℃ |
Current Drain | Transmit: 2A MAX |
Receive: Squelched 0.3A | |
VOL Max: 0.8A | |

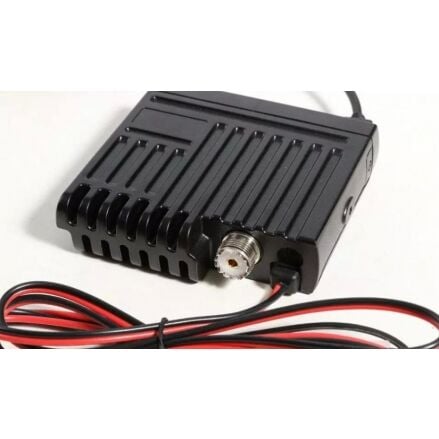

Antenna Connector | UHF, SO-239 |
Transmitter Specifications | |
Power output | 8 Watts FM/AM |
Transmission interference | inferior to 4nW(-54dBm) |
Frequency Responce | 300-3000Hz |
Modulated signal distortion | inferior to 5% |
Output Impedance | 50 ohms |
Receiver Specifications | |
Sensitivity | Less than 1uV or 10dB(S+N)/N |
Image Rejection | 70dB |
Adjacent Channel Rejection | 60dB |
IF Frequencies | 1st 10.695MHz |
2nd 455Khz | |
Audio Output Power | 1 watts |
Squelch | less than 1uV |
Frequency Responce | 300-3000Hz |

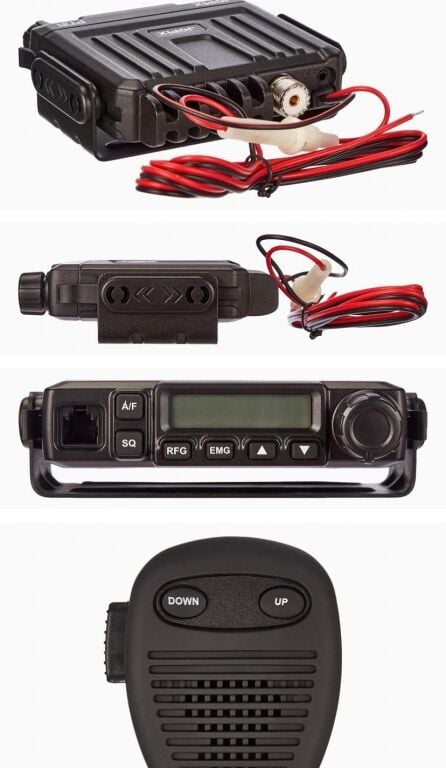

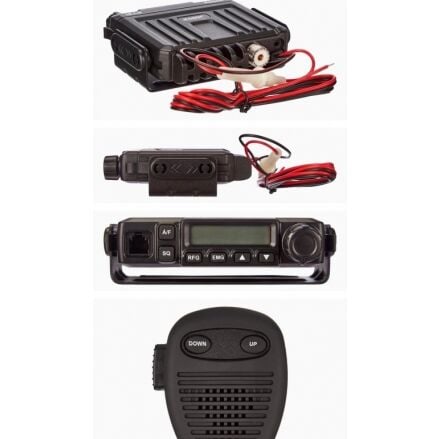

Packing List:
1x MYT925 mobile radio
1x microphone,
1x mounting bracket,
1x power cable,
1x screw set.
